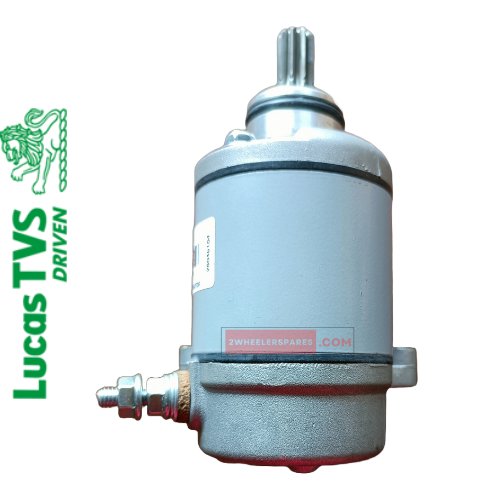

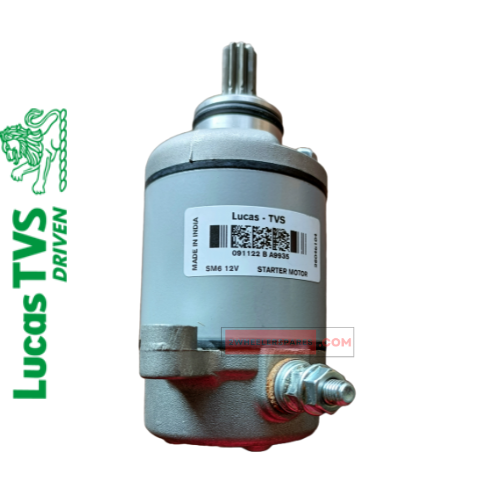

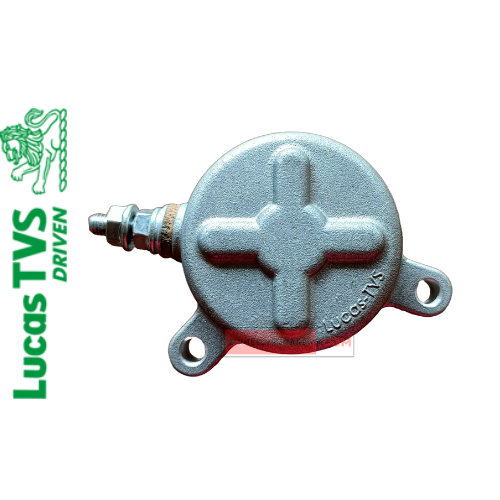

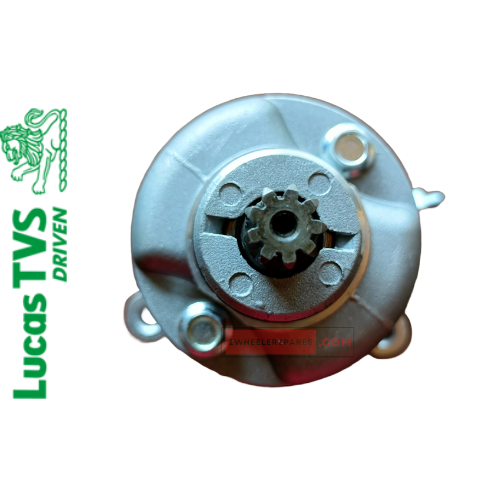

Self Starter Motor Suzuki Access 125 Lucas TVS Genuine Self Motor

Self Starter Motor Suzuki Access 125 Lucas TVS Genuine Self Motor Pack consists of 1 self motor. Suitable for Suzuki Access Number of connectors –  1 Single Connector Bolt Type Parts Details Part Number – 26046104 Product – STARTER MOTOR Type – SM6 Voltage – 12V Output Rating – 0.25Kw Model – 2W MOTOR Application – Suzuki Access Engine – 4 STROKE 125CC From the manufacturer Higher Capacity Vehicle Applications This Starter Motor is designed for higher end Motor cycles with twin cylinder engine having capacity from 500CC and above. Starter Specification Frame Size : 68 mm System Voltage : 12 Volts Polarity : Negative Earth Nominal Output : 1.0 kW Weight : 1.7kg(Approx.) Direction of Rotation Standard : Clockwise(Viewed from Pinion End) Optional : Counter clockwise rotation On Request Rated Time : 30 Seconds Excitation type : Permanent Magnet Excitation Number of Poles : 4 Temperature Range : – 32°C to 80°C Typical Performance Curve Guaranteed Performance Performance Specification at Ambient Temperature 25°±5° C CONDITION VOLTAGE (Volts) CURRENT (Amps) TORQUE (N-m) SPEED (RPM) No Load (11.5) 37 (Max.) —- 10,100 (Min.) Loaded 8.0 200 (Max.) 1.75 4,750 (Min.) Restrained (3.5) 425 (Max.) 3.45 (Min.) —- Self Starter Motor , Lucas Parts Show More Show Less
