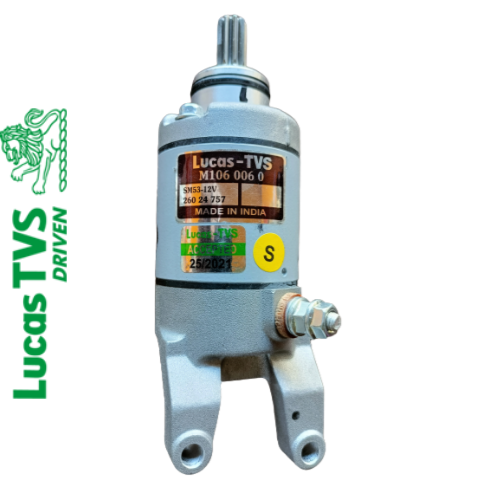

Self Starter Motor TVS Apache 160/ Apache180 Lucas TVS (26024757)

Pack consists of 1 self motor. Suitable for TVS Apache 160/ Apache180 Parts Details Part Number – 26024757 Product – STARTER MOTOR Type – SM6 Voltage – 12V Output Rating – 0.4Kw Model – 2W MOTOR Application – TVS Apache 160/ Apache180 Engine – 150cc & 180cc From the manufacturer Medium Capacity Vehicle Applications This Starter Motor is designed for two wheelers having engine capacity from 150CC to 400CC. Starter Specification Frame Size : 53 mm System Voltage : 12 Volts Polarity : Negative Earth Nominal Output : 0.35 kW Weight : 0.70kg(Approx.) Direction of Rotation Standard : Clockwise (Viewed from Pinion End) Optional : Counter clockwise rotation On Request Rated Time : 30 Seconds Excitation type : Permanent Magnet Excitation Number of Poles : 4 Temperature Range : – 5°C to 100°C Typical Performance Curve Guaranteed Performance Performance Specification at Ambient Temperature 25°±5° C CONDITION VOLTAGE (Volts) CURRENT (Amps) TORQUE (N-m) SPEED (RPM) No Load (11.5) 26 (Max.) —- 11,500 (Min.) Loaded (10) 70 0.343 (Min.) 7,800 (Min.) Restrained (5) 220 Max 1.35 (Min.) —- Show More Show Less
