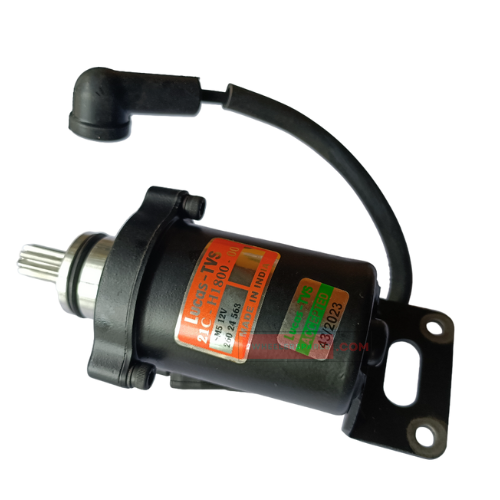

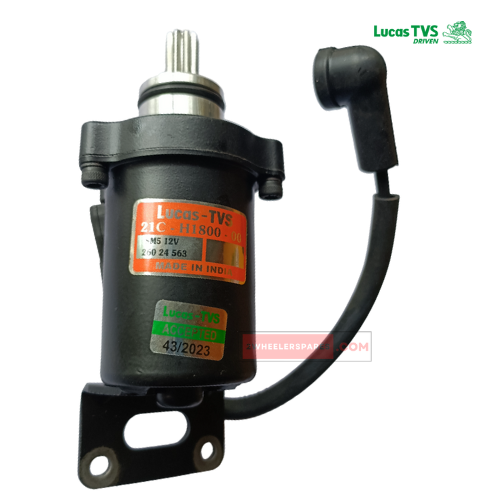

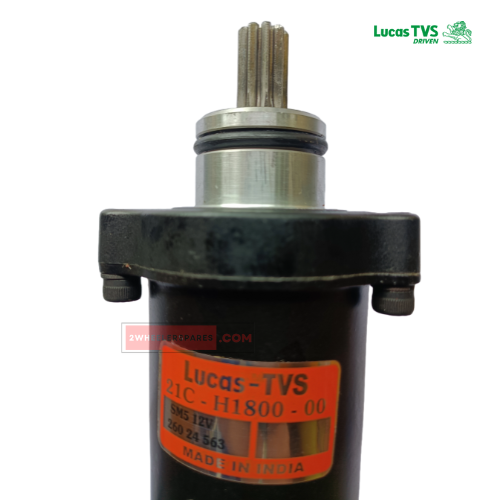

Fascino Self Starter Motor Yamaha Genuine Self Starter Motor

Fascino Old Model Self Starter Motor Yamaha Genuine Self Starter Motor Pack consists of 1 self motor. Suitable for Yamaha Fascino Old Model (21C) Number of connectors – 1 Pin Parts Details Part Number – 26024563 Product – STARTER MOTOR Type – SM5 Voltage – 12V Output Rating – 0.25Kw Model – 2W MOTOR Application – Yamaha FZ Engine – 4 STROKE 100CC From the manufacturer Lower Capacity Vehicle Applications This Starter Motor is designed for two-wheelers having engine capacity from 100CC to 125CC. Starter Specification Frame Size: 50 mm System Voltage: 12 Volts Polarity: Negative Earth Nominal Output: 0.3 kW Weight: 0.77kg(Approx. with wiring harness.) Direction of Rotation Standard: Clockwise (Viewed from Pinion End) Optional: Counterclockwise rotation On Request Rated Time: 30 Seconds Excitation type : Permanent Magnet Excitation Number of Poles: 4 Temperature Range : 0°C to 100°C Typical Performance Curve Guaranteed Performance Performance Specification at Ambient Temperature 25°±5° C CONDITION VOLTAGE (Volts) CURRENT (Amps) TORQUE (N-m) SPEED (RPM) No Load (11.6) 14 (Max.) —- 13,000 (Min.) Loaded 10.3 40 0.206 (Min.) 9,000 (Min.) Restrained (5.7) 160 (Max.) 0.834 (Min.) —- Suitable Models S.No Models 1. Yamaha FZ Models 2. Ray , Fascino Old Models Part Number OE – 21C-H1800-00 Self Starter Motor, LUCAS TVS Motors Show More Show Less
