Self Starter Motor TVS Starcity Old Lucas TVS Genuine Self Starter Motor

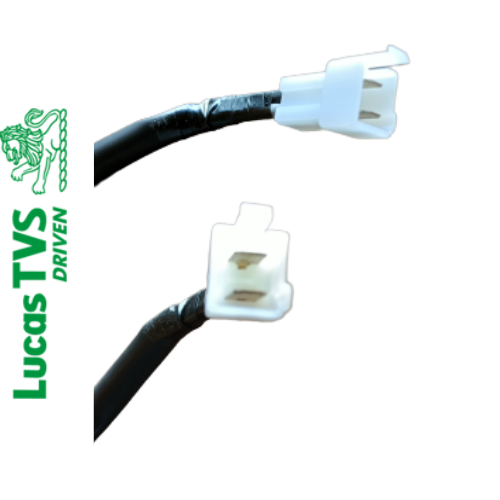

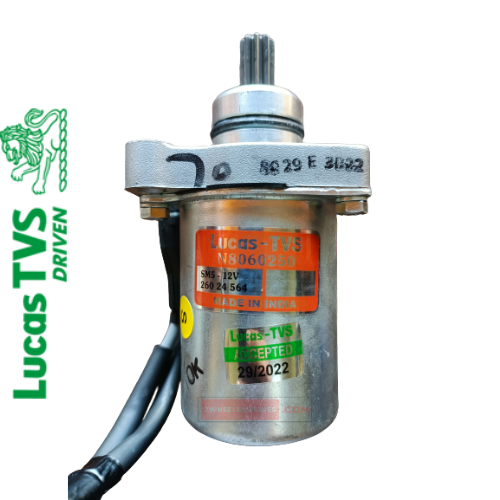

Self Starter Motor TVS Starcity Old Lucas TVS Genuine Self Starter Motor Pack consists of 1 self motor. Suitable for TVS Starcity Old Number of connectors – 2 Pin Single Socket White Color Part Number – 26024564 Parts Details Part Number – 26024564 Product – STARTER MOTOR Type – SM5 Voltage – 12V Output Rating – 0.25Kw Model – 2W MOTOR Application – TVS Starcity Old Engine – 4 STROKE 100CC From the manufacturer Lower Capacity Vehicle Applications This Starter Motor is designed for two wheelers having engine capacity from 100CC to 125CC. Starter Specification Frame Size : 50 mm System Voltage : 12 Volts Polarity : Negative Earth Nominal Output : 0.3 kW Weight : 0.77kg(Approx. with wiring harness.) Direction of Rotation Standard : Clockwise (Viewed from Pinion End) Optional : Counter clockwise rotation On Request Rated Time : 30 Seconds Excitation type : Permanent Magnet Excitation Number of Poles : 4 Temperature Range : 0°C to 100°C Typical Performance Curve Guaranteed Performance Performance Specification at Ambient Temperature 25°±5° C CONDITION VOLTAGE (Volts) CURRENT (Amps) TORQUE (N-m) SPEED (RPM) No Load (11.6) 14 (Max.) —- 13,000 (Min.) Loaded 10.3 40 0.206 (Min.) 9,000 (Min.) Restrained (5.7) 160 (Max.) 0.834 (Min.) —- Show More Show Less
