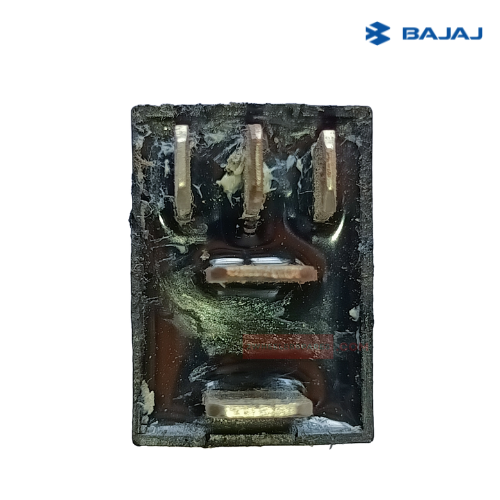

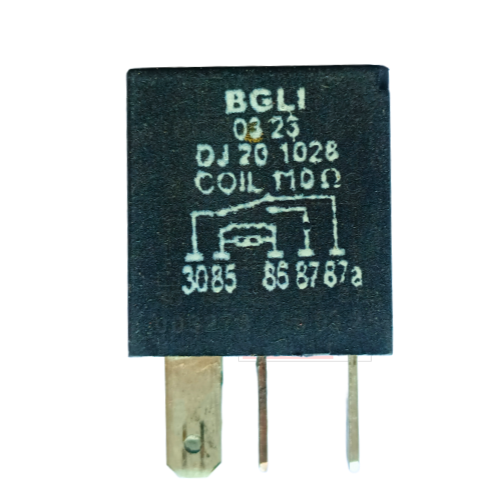

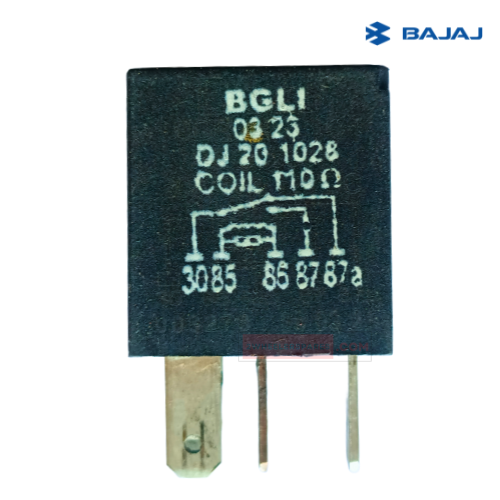

Avenger 180 Micro Relay 5 Pin Bajaj (Relay Interlock) Genuine Parts Pack consists of 1 Relay with 5 Pins Product Description Brand Bajaj Genuine Parts Type Micro Relay Battery Voltage 12v Operating Voltage 12V, 24V Number Of Pins 5 Technical Specs Contact Form 1A,1C Contact Material Ag Sn O2 Coil Voltage(DC) 12 V, 24V Rated Switching Current 30A/ 12VDC,20A/12VDC Max Switching Voltage 28V DC Max Switching Current 60A Contact Voltage Drop 200mV Max at 20A Coil Power Consumption 1.5 W Pull in Voltage Max 8V Max Drop-off Voltage 1~4V Dielectric Strength > 5 M? at 500VDC Between Open Contacts 500V AC/1min Between Coil & Contacts 1000V AC/ 1min Insulation Resistance > 10 M? at 500VDC Operating Temperature -30? TO 85?C Operate & Release time < 10ms Endurance Test 50,000 cycle of 5 sec ON & 30 sec OFF with a load current of 20A, 12VDC Terminal Shape Plugin Dimensions (mm) 36 x 22.80?x 15.20 Weight 18 gram Usage?&?Utility A relay is an electrically operated switch. Many relays use an electromagnet to operate a switch mechanically, but other operating principles, such as solid-state relays, are also used. Relays are used where it is necessary to control a circuit by a separate low-power signal, or where several circuits must be controlled by one signal. S.No Models 1. Bajaj All Models 2. Pulsar Part Number – DJ201028 Self Starter Relay , Bajaj Genuine Parts Show More Show Less
