Apache Master Cylinder Assembly Rear TVS Genuine Parts
$49.39
$93.84

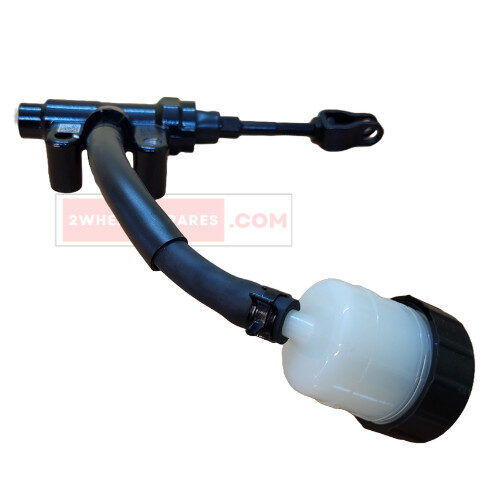

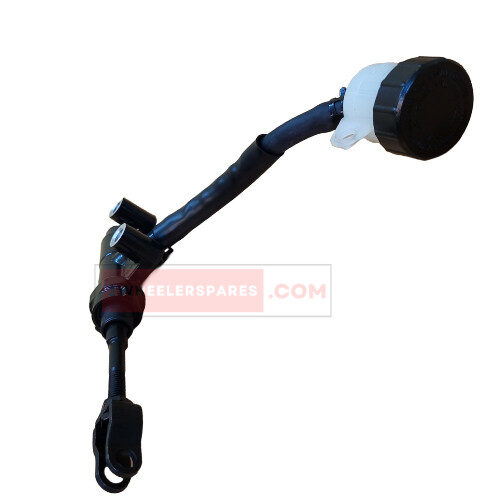

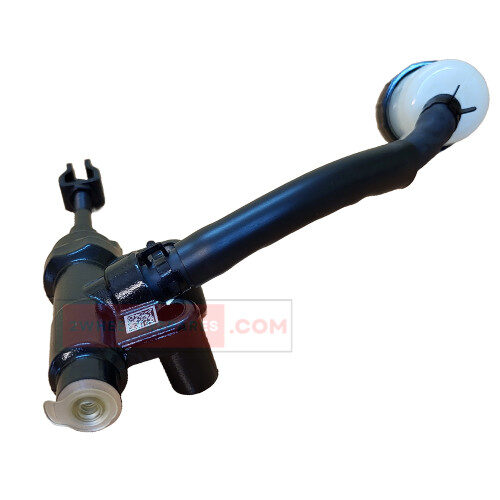

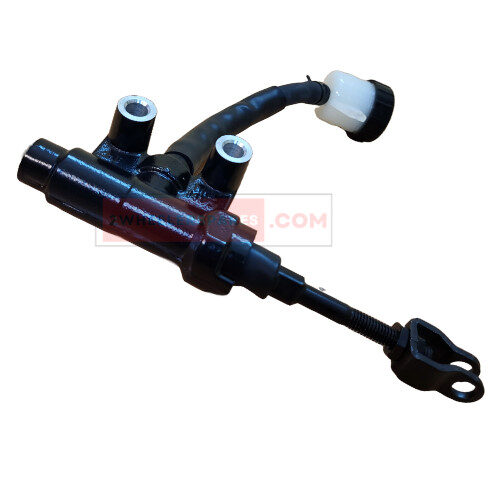

Apache Master Cylinder Assembly Rear TVS Genuine Parts This pack consists of 1 Master Cylinder Assembly. Product Description Brand – TVS Genuine Parts Fitment – Rear Material – Cast Iron and Composite Materials Number of Ports – 2 Mechanism Type – Hydraulic Comes with disc oil can. About this item The Master Cylinder Assembly is the core component of a motorcycle’s hydraulic braking (or clutch) system. It is essentially the “heart” of the system, translating the rider’s effort into powerful stopping force. ⚙️ Function and Principle The master cylinder’s primary job is to convert the mechanical force applied to the brake lever (for the front brake) or the brake pedal (for the rear brake) into hydraulic pressure. Mechanical Force $\rightarrow$ Hydraulic Pressure: When you squeeze the lever, a piston inside the cylinder bore is pushed forward. Fluid Transfer: This movement compresses the brake fluid (an incompressible hydraulic fluid). Braking Action: The pressure is then transmitted through the brake lines to the slave cylinder (the caliper assembly) at the wheel. The pressure forces the caliper’s pistons outward, pressing the brake pads against the rotor to slow or stop the bike. ��️ Key Components of the Assembly A typical master cylinder assembly consists of several crucial parts: Master Cylinder Body (Bore): The main housing where the piston slides. Piston Assembly: Includes the piston, a return spring, and seals/O-rings (cups) that create the pressure seal. Brake Lever/Pedal: The point where the rider applies the force. Reservoir: A small, transparent tank (often mounted separately or integrated) that stores the brake fluid and allows the rider to visually check the fluid level. Compensating Port/Portless Design: A feature that allows fluid to flow back into the reservoir when the lever is released, equalizing pressure and ensuring the brakes don’t drag. Banjo Bolt/Outlet Port: The connection point for the high-pressure brake line. Banjo Bolt/Outlet Port: The connection point for the high-pressure brake line. The disc brake assembly is the core component of modern braking systems found in virtually all cars, motorcycles, and many bicycles. It is designed to convert the kinetic energy (motion) of the spinning wheel into thermal energy (heat) through friction, thereby slowing or stopping the vehicle. Suitable For Apache TVS Apache Apache RTR 160 Apache RTR 160 HE Apache RTR 160 EFI Apache RTR 160 REF Apache RTR 180 Apache RTR 180 ABS Apache RTR 180 REF Apache RTR 180 REF ABS Apache RTR 200 4V Apache RTR 200 4V EFI Part Number – N9112070 Master Cylinder Assembly , TVS Genuine Parts Show More Show Less
